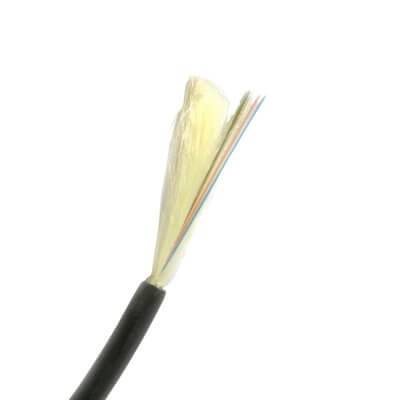

Tactical Fiber Optic Cable (Spiral Steel Tube Armored)
This tactical fiber cable features spiral steel tube armor for added protection in field operations and complex environments. Pre-terminated cable options are available.
Description
This indoor armored tactical fiber cable uses both aramid yarn and a spiral steel tube for its strength member, making it ideal for applications requiring rodent protection. Multiple tight buffered fibers are protected within the cable sheath, along with the aramid yarn and spiral steel tube.
The stainless steel spiral steel tube provides resistance to compression, tension, and rodent bites. This tactical fiber cable can be used in various harsh and complex wiring environments.
Application
Suitable for outdoor aerial installation and FTTH (Fiber to the Home).
Features
- Tight buffered optical fiber for easy stripping and operation.
- Good flame retardant performance from the tight buffered fiber.
- Aramid yarn strength member for excellent tensile characteristics.
- Stainless steel tube for extra tensile and pressure strength.
- Option to add stainless steel woven mesh for further tension and anti-rodent performance.
- Small circular cable for convenient laying.
- Flexible with a good bending radius during operation.
Specifications
Optical Characteristics
| Fiber Count | Cable Diameter (mm) | Crush long/short term (N/100mm) | Tensile long/short term (N) | Bending Radius dynamic/static (mm) | Attenuation 1310/1550nm | Attenuation 850/1300nm | Operation Temperature (°C) | Cable Weight |
|---|---|---|---|---|---|---|---|---|
| 1 | 2.0/2.4 | 400/600 | 3000/4000 | 48D/24D | ≤0.4 | ≤0.3 | -40 ～ 80 | 7/9 |
| 2 | 2.8 | 400/600 | 3000/4000 | 48D/24D | ≤0.4 | ≤0.3 | -40 ～ 80 | 10 |
| 2 | 4 | 1200/1500 | 3000/4000 | 80D/40D | ≤0.4 | ≤0.3 | -40 ～ 80 | 28 |
| 4 | 4 | 1200/1500 | 3000/4000 | 80D/40D | ≤0.4 | ≤0.3 | -40 ～ 80 | 28 |
| 6 | 5 | 1200/1500 | 3000/4000 | 100D/50D | ≤0.4 | ≤0.3 | -40 ～ 80 | 32 |
